all-sun test & measurement equipments >> Digital Multimeter

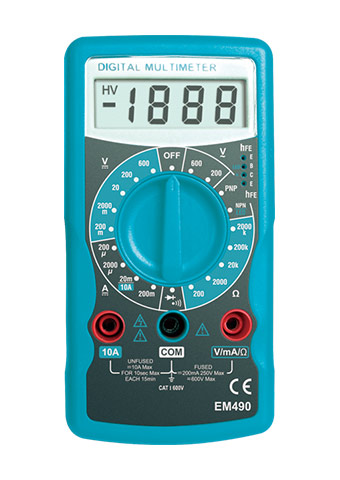

Picture of all-sun EM490
Model: EM490

Digital Multimeter EM490 Series


Features

[2007 catalog B] [Page 25]

·3 1/2 digits LCD,Max.reading of 1999
·Low battery indication
·Overload protection
·Audible continuity

CAT I

LED TEST

Specifications

Voltage DC:200m/2/20/200/600V
Voltage AC:200/600V
Current DC:200μ/2m/20m/200m/10A
Resistance:200/2k/20k/200k/2000kΩ
LED Test:Yes
hFE:Vce≈3V, Ib≈10μA
Continuity:Yes
Diode Check:2.8V/1mA

Power:9V battery (6F22)
Dimensions(W×L×T):66×127×26 mm
Weight:106g (with battery)

Accessories

Test Lead; Battery; Users Manual; Holster (optional)
